GYTC8S Self Supporting Figure 8 Fiber Optic Cable Outdoor for Telecommunication

Name: GYTC8S Self Supporting Figure 8 Fiber Optic Cable Outdoor for Telecommunication
Brand: MingTong
Price: 500 USD

Cheap GYTC8S Self Supporting Figure 8 Fiber Optic Cable Outdoor for Telecommunication for sale

Brand Name : MingTong

Model Number : GYTC8S

Certification : ISO

Place of Origin : Dongguan CHINA

Price : 500-3000RNB/KM

Payment Terms : L/C,T/T

Delivery Time : It depends on the actual situation

MOQ : 20km

Packaging Details : Wooden scroll + cardboard box / Wooden scroll + wooden board

Supply Ability : 200km/Day

Name : Figure 8 Fiber Optic Cable

Application : Telecommunication, Aerial, Duct, Telecom, Network

Fiber Type : G652D, G657A1, G657A2

Highlight : GYTC8S Outdoor Fiber Optic Cable, Figure 8 Outdoor Fiber Optic Cable, GYTC8S outdoor fiber patch cable

Messenger Diameter : 5.0mm

Messenger : 7*1.0mm Steel Wire

Contact Now

Product Description

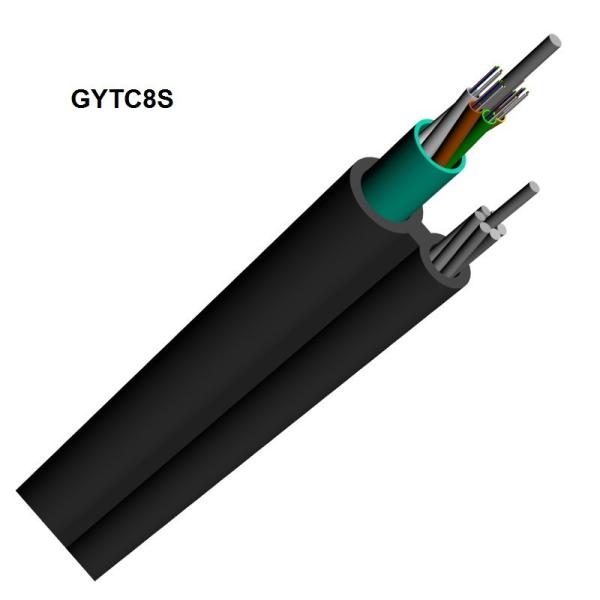

GYTC8S Outdoor Fiber Optic Cable Aerial Self-supported figure 8 optical cable Corrugated Steel Tape Armored

Description:

Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration, protected with a corrugated steel tape armor. All whole unit and galvanized steel messenger are covered with black polyethylene outer jacket.

Structure:

Self-supporting single steel wire,structure of figure 8
Loose tube stranded, filling with compound
Central strength member
PE outer sheath

Feature:

Self-supporting stranded steel wire(7*1.0mm) structure of figure 8, provides high tensile strength
Loose tube stranded, special gel in the tube offers ceitical prodection for the fibers
Anti-UV PE jacket
Resistant to high and low temperature cycle temperature changes, resulting in anti-aging and longer life-span

Specification:

Fiber G652D

Category	Description		Specifications
			Before cabling	After cabling
Optical Specifications	Attenuation @1310 nm		≤0.34 dB/km (max.)	≤0.36 dB/km (max.)
	Attenuation @1550 nm		≤0.20 dB/km (max.)	≤0.22 dB/km (max.)
	Attenuation @1625 nm		≤0.23dB/km	≤ 0.25 dB/km
	Zero Dispersion Wavelength		1300~1324 nm
	Zero Dispersion Slope		≤ 0.090 ps/nm2·km
	PMD Link value (M=20cables Q=0.01% ) maximum PMDQ		0.2 ps/√km
	Cable Cutoff Wavelength (λcc)		≤1260 nm
	Macro bending Loss (1 turn; Ф32 mm) @1550 nm (100 turns; Ф60 mm) @1625 nm (100 turns; Ф50 mm) @1310 &@1625 nm		≤ 0.05 dB ≤ 0.05 dB ≤0.05 dB
	Mode Field Diameter	@1310 nm	9.2±0.4μm
		@1550 nm	10.4±0.5μm
Dimensional Specifications	Cladding Diameter		125 ±0.7μm
	Core/clad concentricity error		≤0.5μm
	Cladding Non-Circularity		≤1.0%
Mechanical Specifications	Proof stress		≥0.69Gpa

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.

GYTC8S Self Supporting Figure 8 Fiber Optic Cable Outdoor for Telecommunication

Application:

Aerial
Long distance communication and LAN
Indoor shaft, building wire
